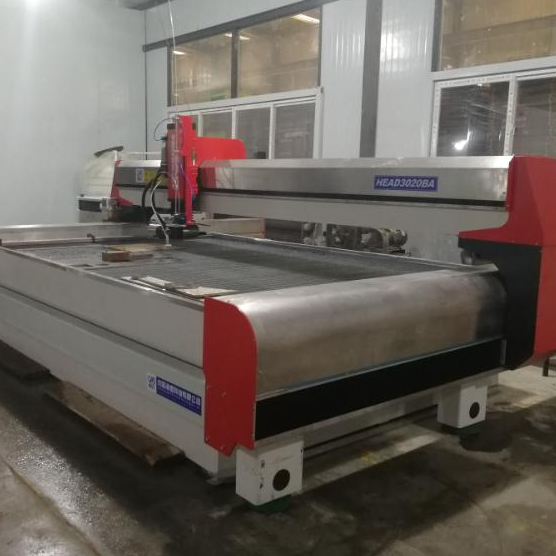

HEAD3020BA-5AB
HEAD
HS code: 84565000
Product Description
1. Adopting AB axis structure to realize numerical control five-axis linkage
2. Adopting imported reducer, few parts, simple and beautiful structure, easy to understand, easy to learn, easy to maintain
3. Using absolute value servo motor No need to return to zero. It is not afraid of zero point loss. Reliability is greatly improved. It improves the precision of cutting and control.
4. Do not use rotary joints, greatly reduce the number of wearing parts, reduce the user's cost of use
5. Adopt one-piece dustproof sealing structure to improve equipment life
6. Original imported linear guide and screw lifting structure make the whole cutter head more stable and reliable
7. AB-five-axis mechanism adopts stainless steel protective cover and equipped with IP67 waterproof joint to ensure the operating environment of servo motor greatly improves the service life.
CNC water Jet Cutting Machine(BA=Gantry type) | ||||||
Parameters | Unit | HEAD3020BA | HEAD4020BA | HEAD3040BA | HEAD2060BA | |
Efficient Cutting area | mm | 3000*2000 | 4000*2000 | 3000*4000 | 2000*6000 | |
Axis travel | X | mm | 3000 | 4000 | 3000 | 2000 |
Y | mm | 2000 | 2000 | 4000 | 6000 | |
Z | mm | 150-180 | 150-180 | 150-180 | 150-180 | |
Cutting accuracy | mm | +/-0.1 | ||||
Positioning accuracy | mm | +/-0.02 | ||||
X,Y dry-run speed | m/min | 0-15 (if need 30m/min speed,we can do as request ) | ||||
Cutting speed | m/min | as to detail material and thickness | ||||
Cutting Sample
Core Optional
Machine Advantage
