HEAD2060BA-5AC
HEAD
HS code: 84565000
Product Details
Equipment composition

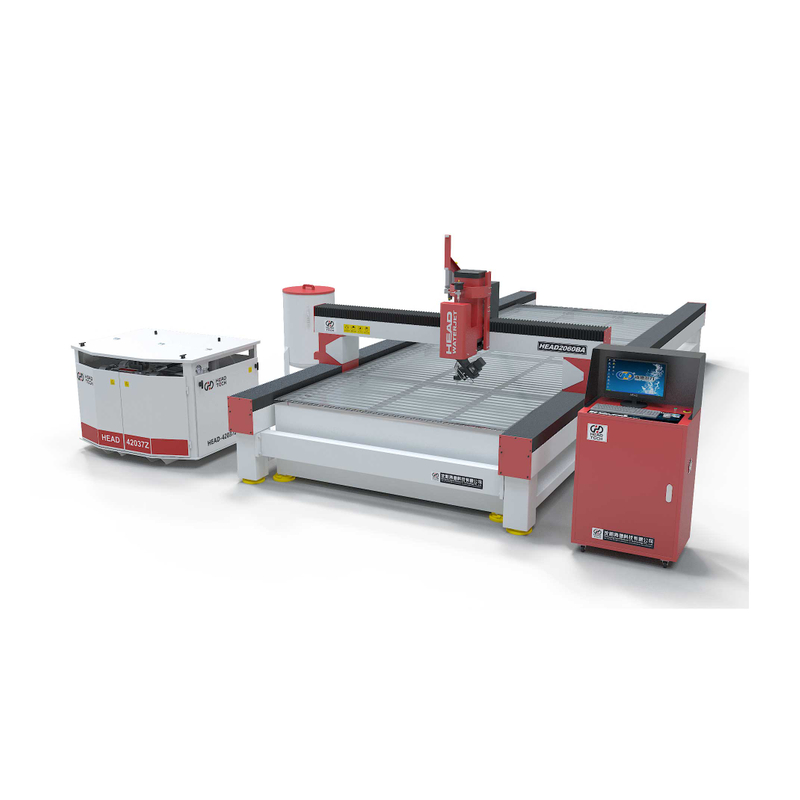

HEAD2060BA CNC cutting platform, CNC system, High-pressure pump，Cutting head system (optional 5AB/5AC five-axis cutting head)
1. High Pressure pump: OMRON/Siemens PLC, Siemens motor, Japan Yuken reversing valve, U.S. booster pump, to ensure the high quality of the pump.
2. Cutting table: Panasonic servo motor, Hiwin linear guide, ABBA ball screw, automatic lubrication system, Z-axis double linear (most of them are single linear guide, easy to be deformed by long-term use), Y-axis welded metal+concrete structure cutting table (most of them are only welded metal), to improve the stability and precision. x-beam is made of one-time extruded aluminum alloy with low weight and high rigidity.
3. CNC controller; professional brand Weihong software, Schneider electrical components, etc.
4. Abrasive supply, upper and lower air supply, to ensure stable supply of abrasive to ensure cutting quality.
5. We provide you with soft water system to improve the service life of pump and spare parts.
Technical Parameters
Model | HEAD2060BA |
Working area | 2000*6000mm |
Equipment size | 3300*7900*2200mm |
Equipment weight | 3390kg (single platform without water tank) |
AC five-axis travel | 1600*5600*150 |
Power | 220/380/400/415/480V-50/60HZ-3PH |
Repeat positioning accuracy | ±0.05mm |
Platform load-bearing capacity | 500kg/㎡ |
Cooling model | Air cooling/Water/Oil cooling |
Introducing the 2024 Latest Upgrade - the epitome of cutting-edge stone cutting equipment that not only meets your requirements but also helps you dominate the local and even overseas markets. With its exceptional performance and top-notch features, this is the most sought-after tool in the market right now. Get ready to elevate your business to new heights with this outstanding device.
Cutting Video/Sample
HEAD Waterjet's metal cutting machine utilizes advanced waterjet technology, enabling precise bevel cuts of 45~60 degrees and seamless edges, making metal components more refined and durable. Waterjet cutting also minimizes material waste and enhances productivity. For applications requiring high precision and strength, such as metal fabrication or industrial parts, waterjet-cut metal offers superior results.
Option Introduction
Simple installation, no pollution to the working environment when repairing and maintaining the equipment.
Customer Showcase
Ensure Worker Safety with Trusted HEAD Waterjet Technology
HEAD Waterjet is equipped with advanced safety features to protect operators and reduce accidents. Combining quality with safety, choose HEAD Waterjet to safeguard your workplace.
Learn more about our safe cutting technology today!
