5 Axis Water Jet Cutter


  • 5  axis tilter angle  60°

  • Europe smart water jet cutting machine softare system

  • Patent floor loading system

  • Laser/Mechnical sensor system

  • Camera system
waterjet cutting machine
Waterjet Cutting Machine Best Supplier

A versatile line of water jet cutting machines built for businesses seeking ultimate flexibility. Perfect for cutting kitchen countertops, as well as a wide range of materials including porcelain tiles, sintered stone, ceramic tiles, quartz and marble. Configurations can include single or multiple cutting heads, with options for 3 or 5 axis, tailored to the specific requirements of each customer.Our equipment has been sold to most parts of Europe including Croatia, Bosnia and Herzegovina, Kosovo, Macedonia, Serbia, Albania, Montenegro, Slovenia, and Bulgaria. We have a dedicated European service team to provide services to customers according to their time difference and solve problems in time.
Water jet Cutter Technical Parameters
Model HEAD4020BA-5AC/HEAD42037Z-B
Working area 4000*2000 MM
Z-axis 150 MM
Cutting Accuracy ± 0.1 MM
Drive Type Servo
Repeat positioning accuracy ±0.05 MM
Platform load-bearing capacity 500 Kg/㎡（optional:1500 Kg/㎡）
Pressure  420 MPA
Cutting Ability 150 MM
Auto Abrasive Supply System 200KG（optional:400KG/1000KG
Pump type Intensifier
Max pressure 420Mpa(6000psi)
Working pressure 50-380MPa（7200-55000psi）
Max orifice diameter 0.33mm
Water flow rate 3.7L/min
Maximum oil pump flow 119L/min
Pressure ratio 1:20
Main motor power 37KW(50hp)
Voltage 380v 50hz
waterjet cutting machine
Water jet cutting machine
Water jet cutting machine
waterjet cutting machine
High Pressure Pump
Head Water jet machine adopt a liquid-to-liquid pressurization mode to implement pressurization, ensuring smooth and efficient pressure increase. At the same time, imported high-quality parts are selected to ensure the continuous stability and reliability of long-term pressure output.
Software CAD-CAM
Head Water jet offers a comprehensive suite of software solutions tailored to meet diverse customer needs, including WEIHONG, ECS, IGEMS, PEGASUS, DDX. These platforms are designed to enhance the efficiency, precision, and versatility of waterjet cutting operations
Laser sensor height measurement
Laser sensor height measurement adopts non-contact scanning. When scanning, it does not come into contact with the cutting material, and will not scratch or squeeze the cutting material, which can meet the high surface quality requirements of customers for cutting materials.
Abrasive supply system with alarm function
Highly automated: It has the function of storing sand and automatically transferring abrasives to the CNC work platform to complete cutting, while also providing a prompt for insufficient sand to avoid problems caused by insufficient sand.
  • TOP1
    Water jet Cutter
    Exports In China
  • 24/7
    Customer Support
  • 48
    Fast Spare Part Replacement Hours​​​​​​​

HEAD Water Jet
What it is. How it works. Why you need it

Factory Supply Great Price
Product Performance Section

Gallery

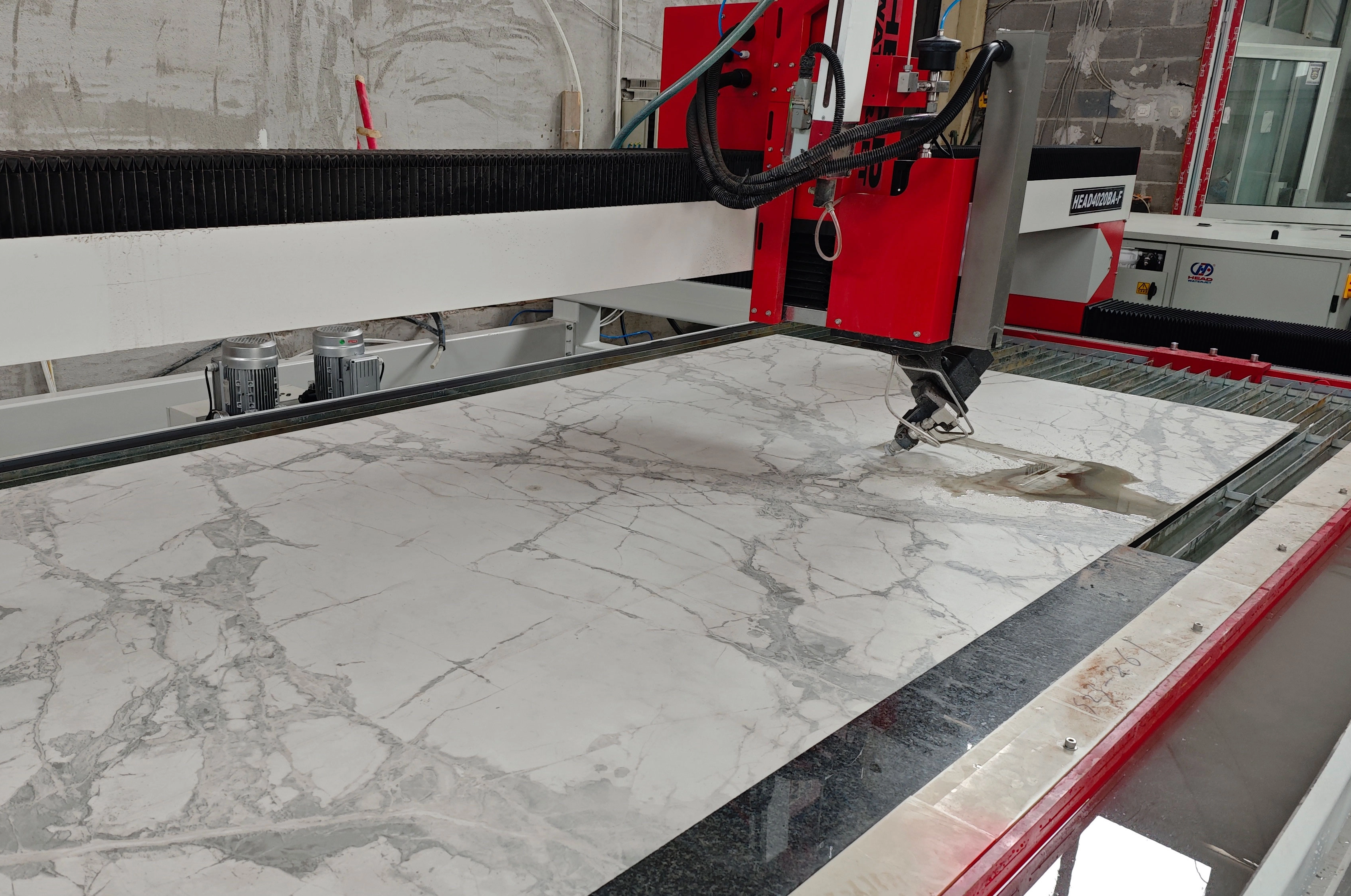

Below you can see pictures of our customers' finished products and latest works using HEAD waterjet cutting machine. Products and works include porcelain tiles, sintered stone, ceramic tiles, quartz and marble and high-end projects. Kitchens and bathrooms are important applications of stone. Browse and enjoy our gallery.
waterjet cutting machine
Water jet
waterjet cutting machine
stone water jet cutting machine
stone water jet cutting machine
Water jet cutting machine



World-Class Support and After-Sales Services

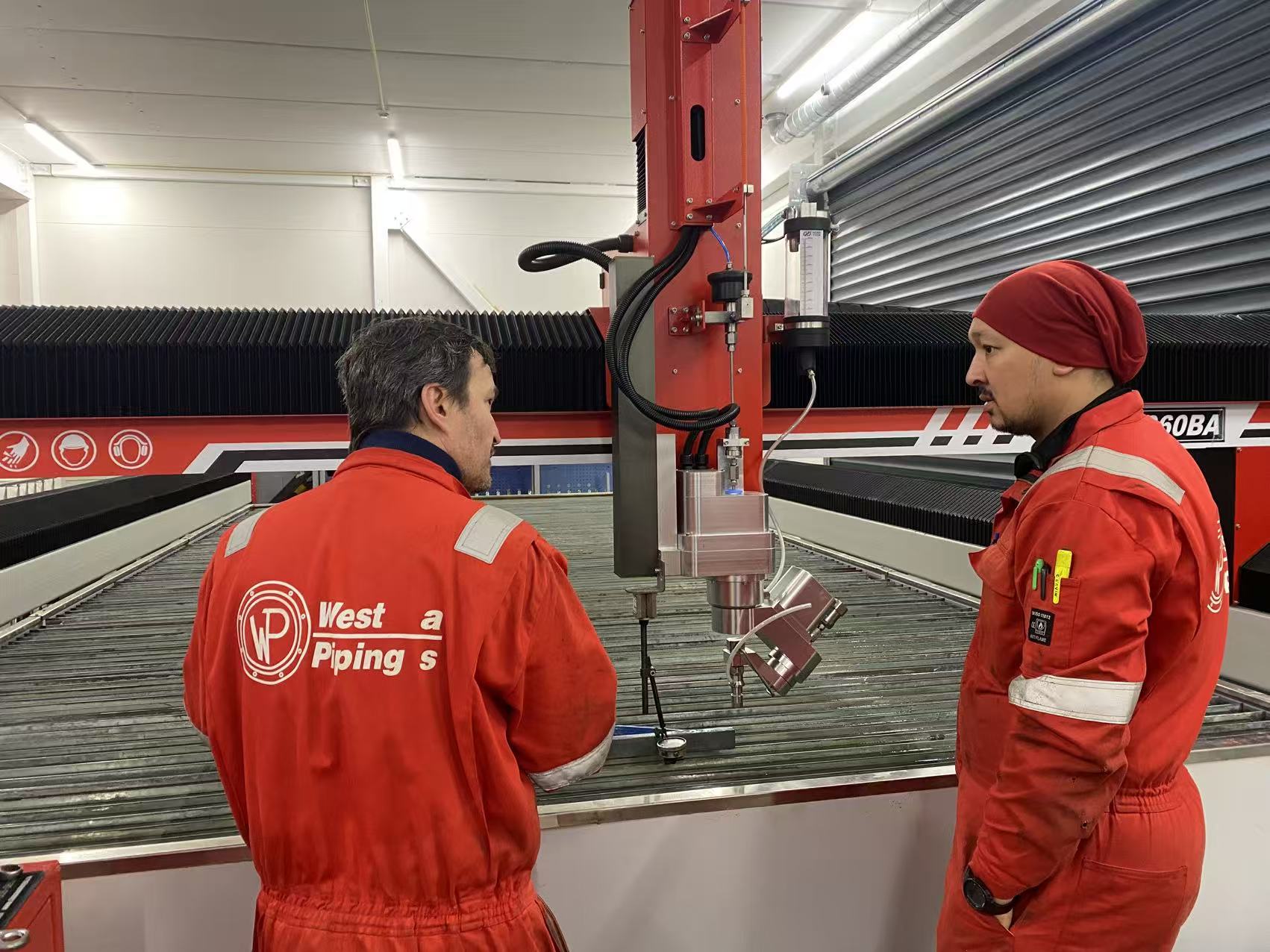

At HEAD Waterjet Competitive Price Highly precise, eco-friendly, we’re committed to keeping your business running smoothly. Our machines are designed for 24/7 operation with minimal downtime. We provide:
  • 24/7 Customer Support
  • Fast Spare Part Replacement (within 48 hours)
  • On-site Training and Setup
  • Annual Maintenance Packages for Longevity
  • You can choose local after-sales engineers to provide services

waterjet cutting machine

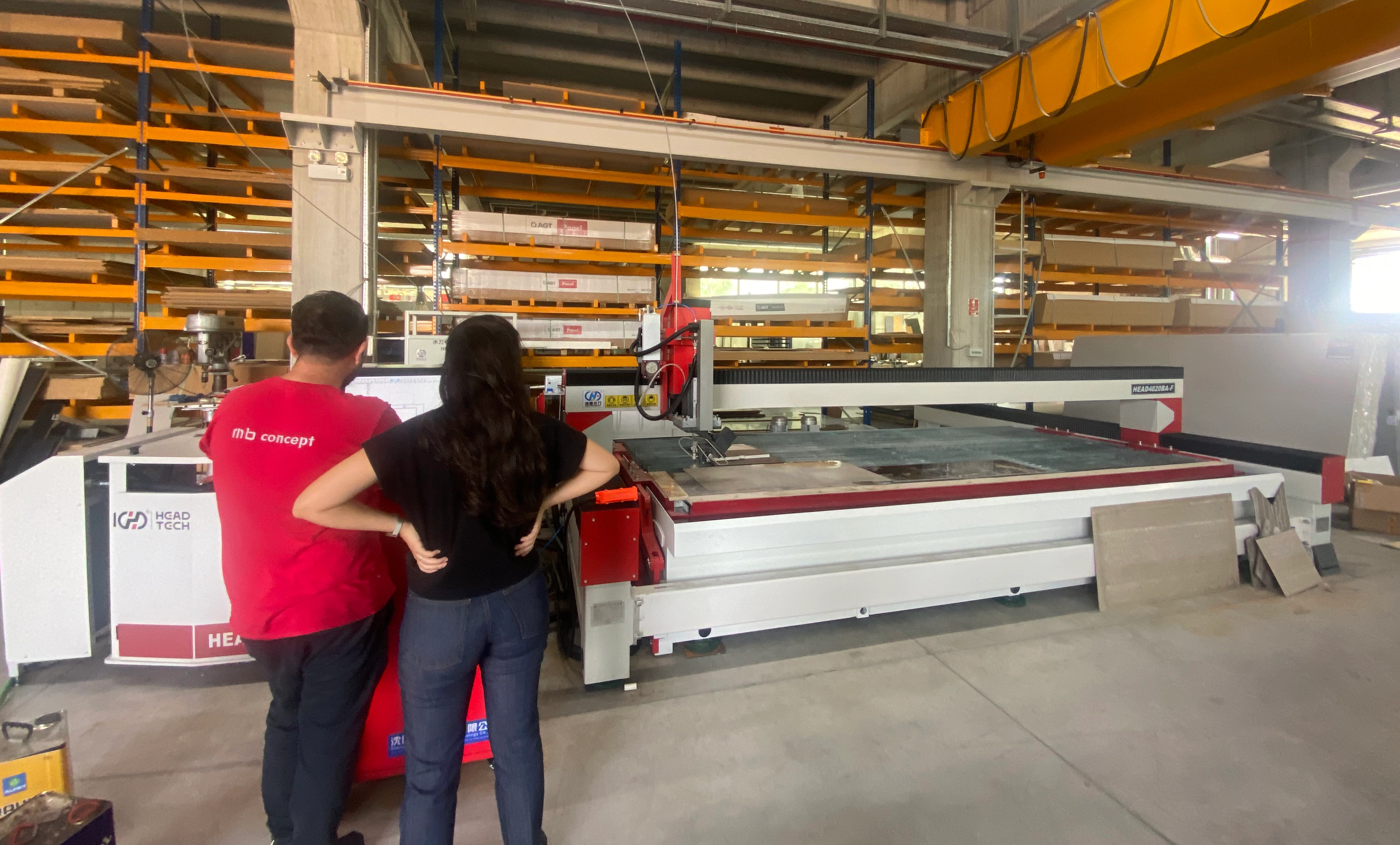

  • HEAD customers in North Macedonia
  • HEAD customers in Cyprus
  • HEAD customers in Romania
  • HEAD customers in Serbia
  • HEAD customers in Montenegro
  • HEAD customers in Slovenia
