HEAD3020BA
HEAD
84565000
Product Description
Abrasive waterjet cutting machines efficiently cut stone, marble, ceramics, porcelain and tile. Waterjet cutting is ideal for the insertion of inlays, and logos for stone and tile applications, as the process effectively maximizes performance, reduces cost and increases profit.
HEAD 5 axis water jet cutting use proven technology to deliver the highest production rates and workshop efficiencies for stone fabricators. For Nexus owners, this means more kitchens per week with less operating hours and a lower cost per kitchen.
High pressure water jet cutting machine is a tool for cutting metal and other materials, using high velocity and pressure waterjet. One full set of machine consists of CNC controller,cutting platform ,pump ,abrasive delivery system
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture.

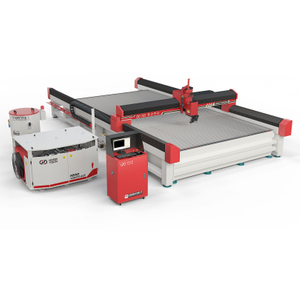

HD5X-AB water cutting system is a solution for the high quality ceramics, stone parquet industry, the reverse slope and the non-ferrous metal vertical precision cutting industry..By changing the inclination angle of the cutting head in the horizontal and vertical directions at the same time, the arbitrary angle control of the cutting head can be realized, and the maximum inclination angle is 8 degrees, and the angle can be finely adjusted according to different requirements to realize precise cutting of various materials
l Small size, light weight, high precision, simple structure and easy maintenance
l Absolute value servo motor for memory of origin position.
l No proximity sensor is required, effectively avoiding the effects of long-term use of sensor lines
l Adopting the best software of Weihong AB five-axis water cutting machine in China, the control is accurate and high, and the cutting effect at the corner is good.
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.
• Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db
• Electrical wiring design and meet European EU standards
Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.
>>>Brief Introduction Of HEAD waterjet company
Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
>>>Try to Read This -------Our Service
1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Why Choose Waterjet
The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
why choose HEAD water jet
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder
Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
