High Precision, Reasonable Price, Good After-Service Standard Features: The laser beam is relayed to the cutting head through fiber optic cable without any loss and thus, provides a superior cutting accuracy and quality. With low power consumption, it is user-friendly as well as environment efficient
  • HD-FH Series

  • HEAD

  • HS code: 8456110090

Availability:

Product Description


海德激光英文LOGO

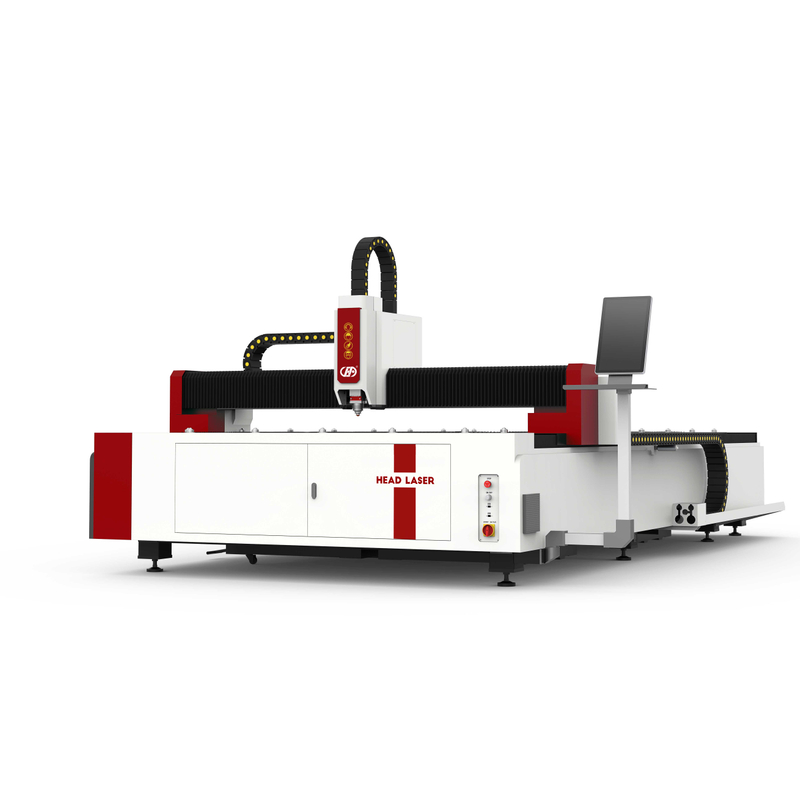

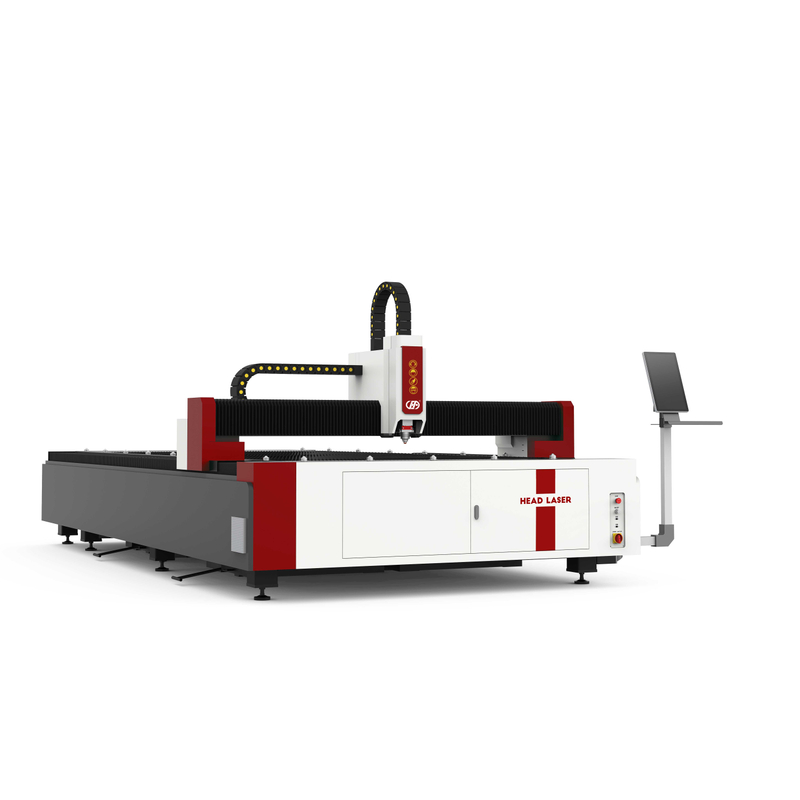

fiber laser cutting machine

fiber laser cutting machine

Laser Cutting Machine Features

  • Laser Power:1000W-6000W

  • Selection of different brands of laser souce :  IPG,Raycus,Max

  • The laser beam is relayed to the cutting head through fiber optic cable without any loss and thus, provides a superior cutting accuracy and quality.

  • With low power consumption, it is user-friendly as well as environment efficient


Technical Parameters

Equipment Specification
Model HD-FH3015 HD-FH4015 HD-FH6015 HD-FH4020 HD-FH6020
Cutting Area 3000*1500mm 4000*1500mm 6000*1500mm 4000*2000mm 6000*2000mm
Laser source MAX/IPG/RayCus MAX/IPG/RayCus MAX/IPG/RayCus MAX/IPG/RayCus MAX/IPG/RayCus
Max Moving Speed 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G
Position Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Reposition Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Power 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A
Max Loading(KG) ≤4000 ≤5000 ≤5500 ≤6000 ≤6000




Details Of Machine Parts

laser cutting machine

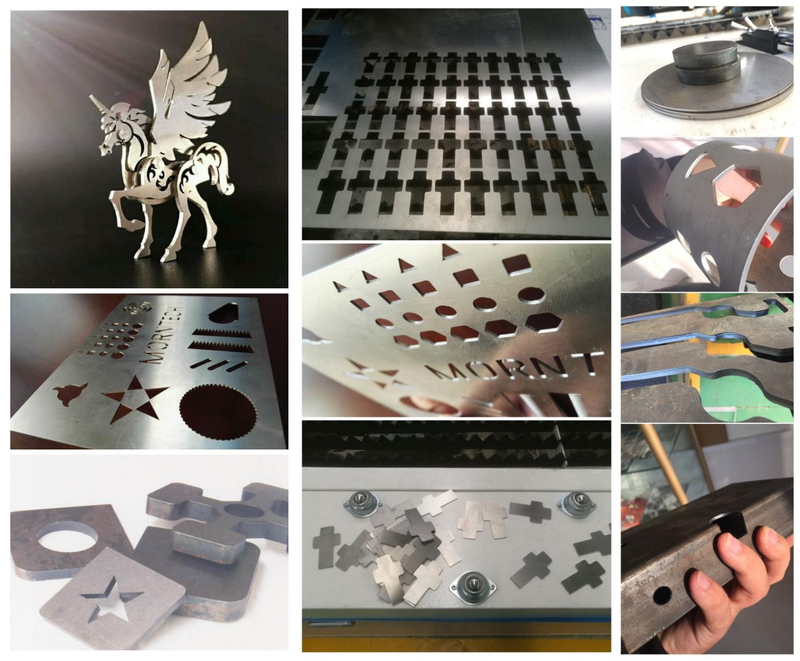

Cutting Samples

fiber-laser-cutting-sample-17-600x600 LF1325L-yp01laser3

laser-cutting-adelaide-laser-world-technologies-1-1024x768图片 3

Quality Control

laser cutting machine

Laser power trial


laser cutting machine

Tri-axis accuracy testing

laser cutting machine

PositionaI accuracy testing - Y axis


fiber laser cutting machine

Measurement accuracy


fiber laser cutting machine

Laser power trial

fiber laser cutting machine

Parallel precision adjustment of rack

Cutting Video

微信图片_20221101143506
