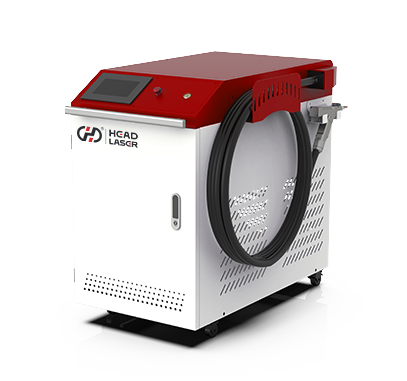

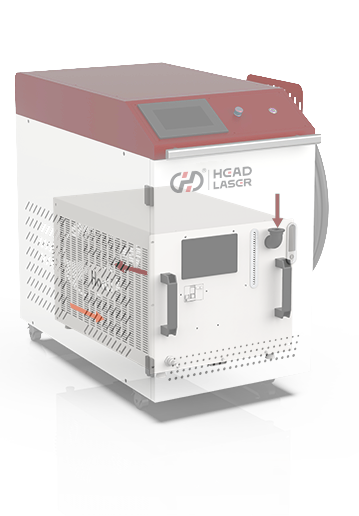

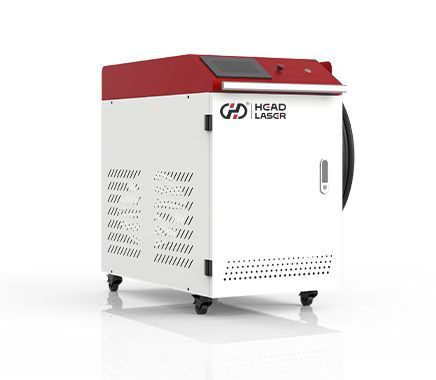

Product Description
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned, and is applied to micro and small workpieces that are automatically produced in large quantities. Mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, stitch welding, tailor welding, sealing welding, etc. High aspect ratio, small weld width, small heat aff
There are 6 welding modes and multiple welding nozzles to meet different welding needs; it has a safety sensor function, which emits a laser after touching the metal and automatically locks the light when it is removed; the spiral jitter function, the width of the weld can be adjusted, and the welding ability is significantly improved.
Laser Power | 1000W | 1500W | 2000W |
Operating Mode | Continuous / Modulation | ||
Laser Wavelength | 1070NM | ||
Output Power Stability | ±2% | ||
Power Requirements | 220V/380V | ||
Machine Power | ≤7KW | ≤9KW | ≤10KW |
Operating Environment temperature range | 15-35℃ | ||
Working Environment humidity range | <70% No condensation | ||
Max Welding Thickness | 0.5-1.5mm | 0.5-2mm | 0.5-3mm |
Welding Line Requirements | ≤0.5mm | ||
Max Welding Speed | 120mm/s | ||
Machine Size | 1190×1100×650mm |
