HS code: 84565000
Product Description

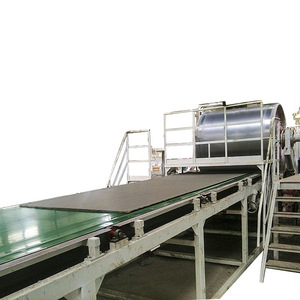

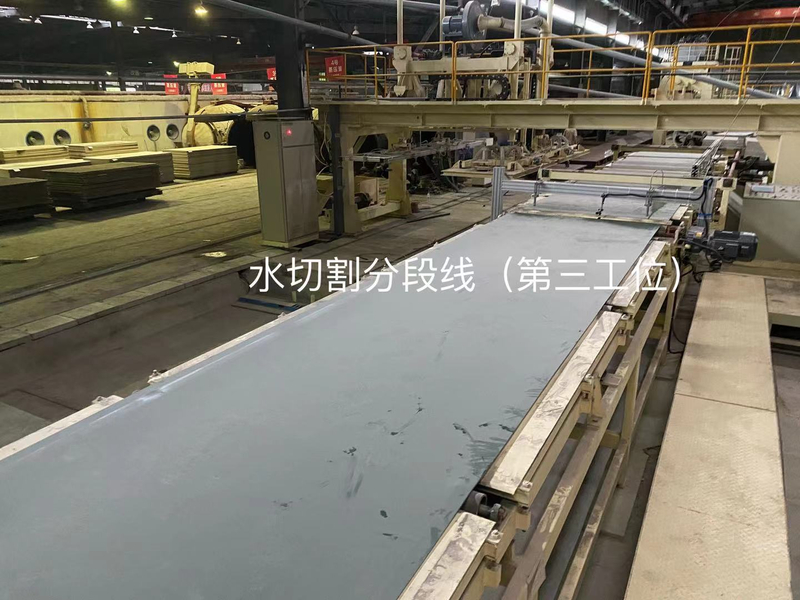

Fiber Cement Board Production Line
The flow-on process is a method of producing fiber cement products, which uses high concentration slurry to lay on the felt, and the slurry is subjected to vacuum filtration, dehydration, and extrusion molding for many times to form a green sheet of the product.
Characteristics of flow-on process:
1. The equipment is relatively simple and lower cost
2. Reasonable energy consumption and lower operation cost
3. Easy operation and convenient maintenance
4. Low adaptability of raw materials
5. Low water consumption and low loss of raw materials
Capacity:
Annual production of 3 & 5 million square meters Double width sheeting machine has an annual production of 8 - 10 million square meters
| 01 Sand preparation section | 08 Board forming section | 15 Re-stacking section |
| 02 Pulp preparation section | 09 Flocculant system | 16 Cleaning and oiling section |
| 03 Cement and auxiliary material silo | 10 Receiving section | 17 Autoclave system |
| 04 Sand slurry storage tank | 11 Stacking section | 18 De-stacking section |
| 05 Pulp slurry storage pool | 12 Waste material recycle system | 19 Drying system |
| 06 Batching section | 13 Press system | 20 Thickness sorting system |
| 07 Clean and recycle water tank | 14 Pre-curing section | 21 anding section |
