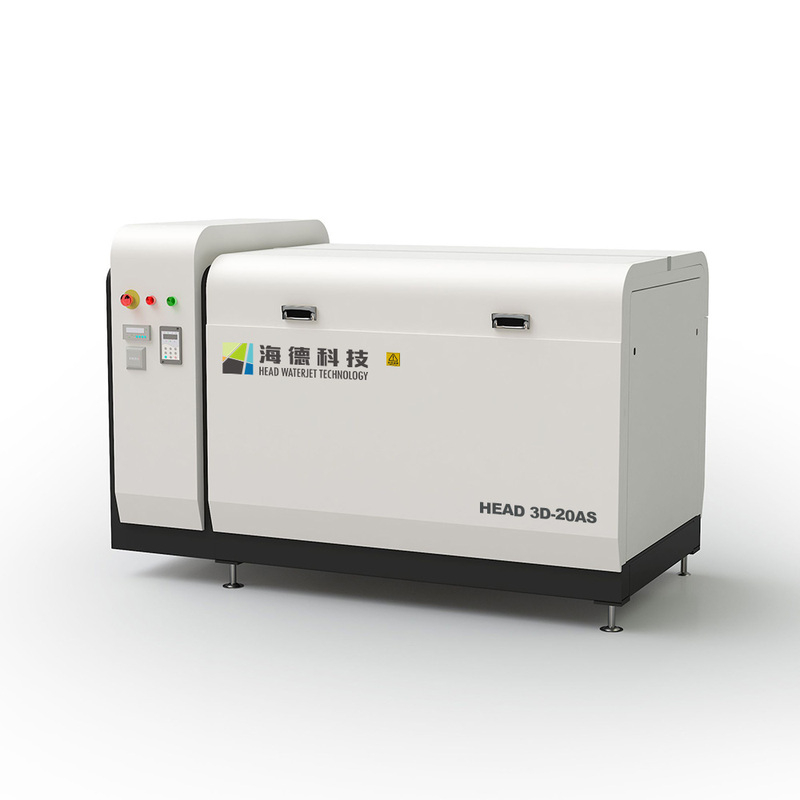

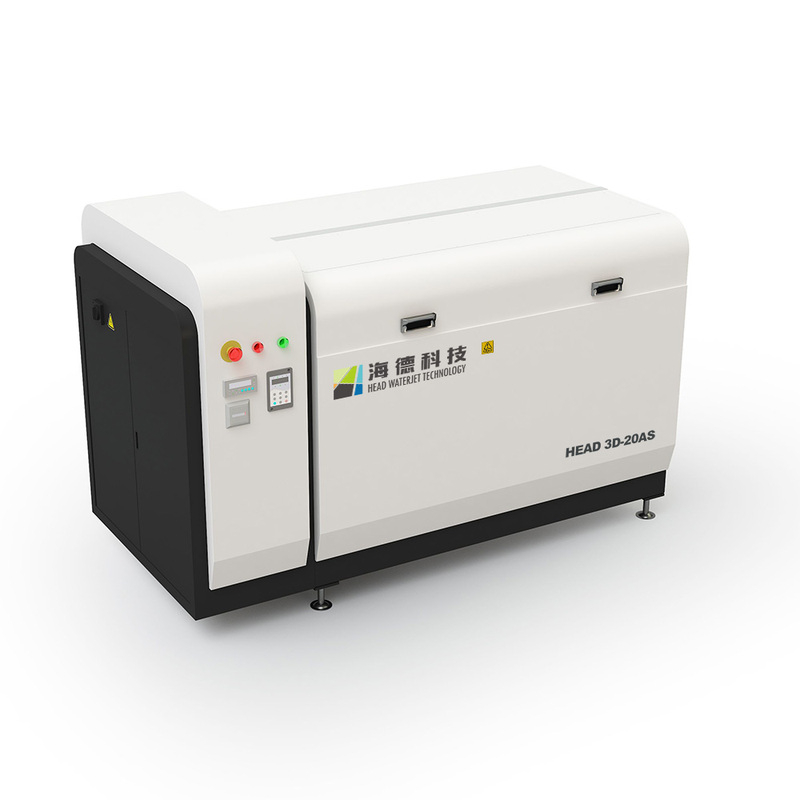

HEAD 3D-20AS
HEAD
84565000
| Size: | |
|---|---|
| Continuous working pressure:: | |
| Power of main motor:: | |
Product Description

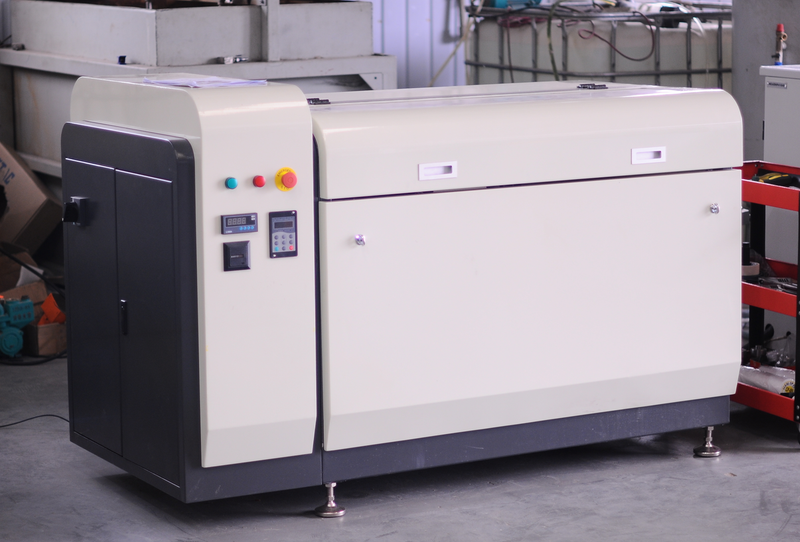

HOT SALE Energy Saving Direct Drive Water Jet Cutting Machine Pump
Power is only 15kw, which can save you 60% to 70% of the cost
servo direct drive pump represents a new generation of high-efficiency, energy-saving ultra-high pressure pump, which is the first large R&D in China. Servo motor driven direct drive intensifier system.
Servo direct drive intensifier pump is a device that directly converts electrical energy into hydraulic energy by a crankshaft mechanism. Because the power conversion of the traditional asynchronous motor is relatively low, and the power conversion ratio of the permanent magnet servo motor is as high as more than 97% . The use of the servo permanent magnet motor instead of the asynchronous motor greatly improves the electricity usage rate of servo direct drive pump and keeps the conversion rate at more than 90%. However, the traditional hydraulic intensifier's energy conversion rate is only about 50%, (the 50% conversion rate is only in the state where high-pressure water is generated).The main reason is that while generating high-pressure water, the hydraulic oil continues to generate heat. The heat generated by hydraulic oil needs to consume a large amount of electricity, and cooling the hydraulic oil increases the loss of electricity.
Technical Features
Maximum pressure: 60000Psi (413.8Mpa)
Continuous working pressure: 46000Psi-55000Psi (320-380Mpa)
Gem Aperture: 0.30mm (0.012inch)
Maximum gem hole diameter: 0.33mm (0.01a3inch)
Maximum drainage: 3.5l / min
Water inlet pressure: 0.4MPa
Power of main motor: 15KW (20HP)
Pump size: 1600x800x900mm

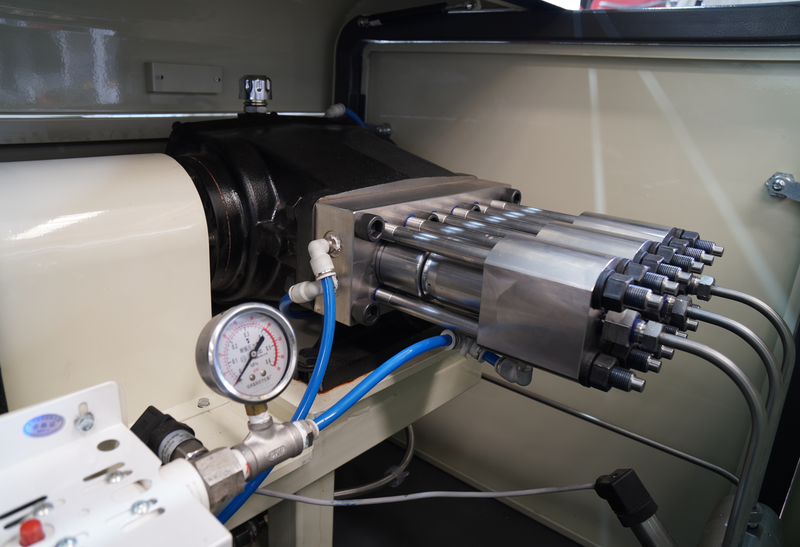

Crankcase transmission system: adopts three-cylinder crankshaft connecting rod structure
Ultra high pressure booster system: (high pressure cylinder, ceramic piston rod, high pressure seal, low pressure seal, high pressure pipeline, check valve, etc.)
Double row water filtration system: (5Micron, 1micron, series)
Power supply / Powersupply: 380VAC, 50Hz (60Hz), 3Phase
