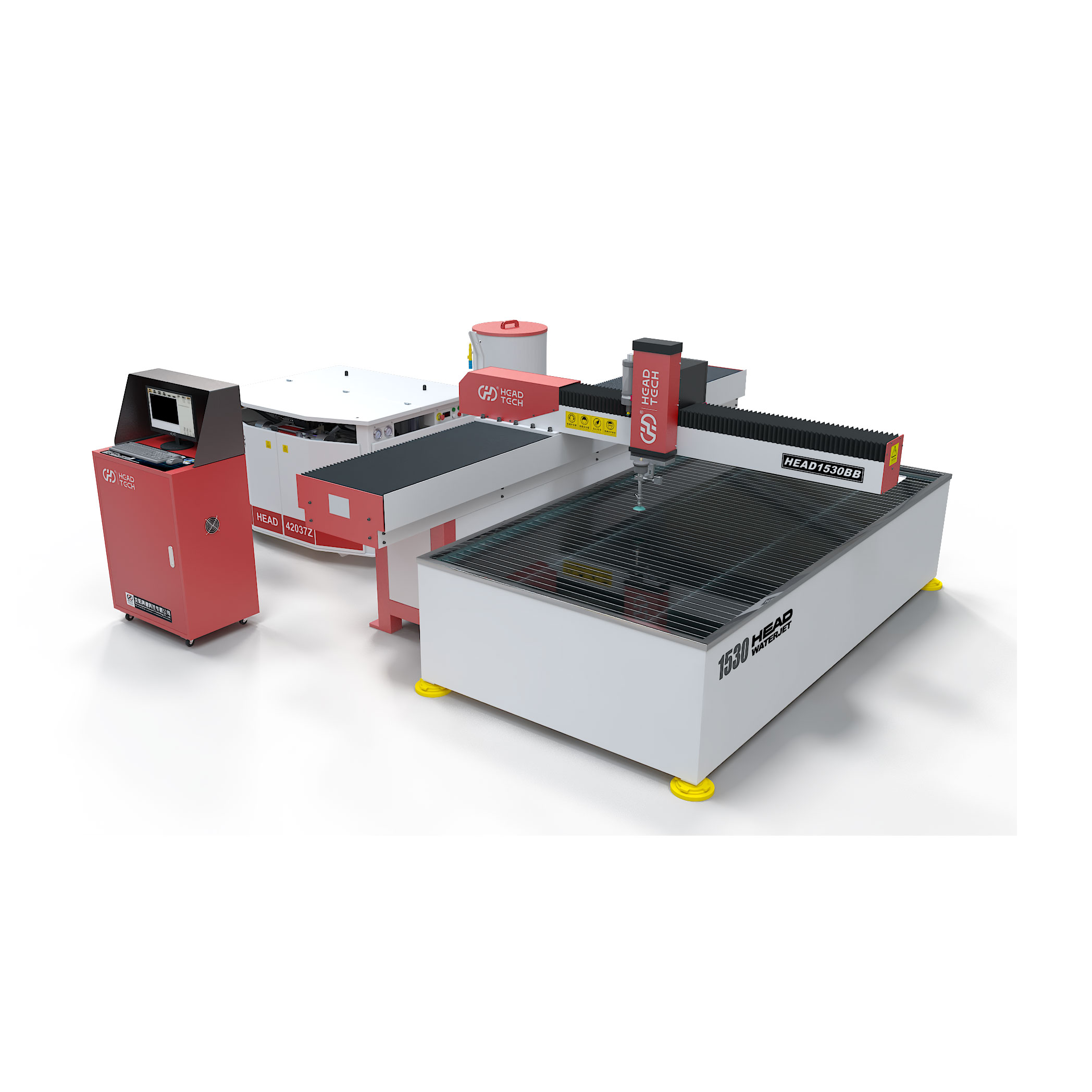

1500*3000mm Cantilever Waterjet Cutting Machine Factory Price

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
(2)Featuring a footprint of less than 115 ft2, HEAD-1530 is a versatile machine that saves floor space while still being able to handle the toughest, industrial-size jobs.
  • HEAD1530BB

  • HEAD

  • HS code: 84565000

Availability:

Product Description

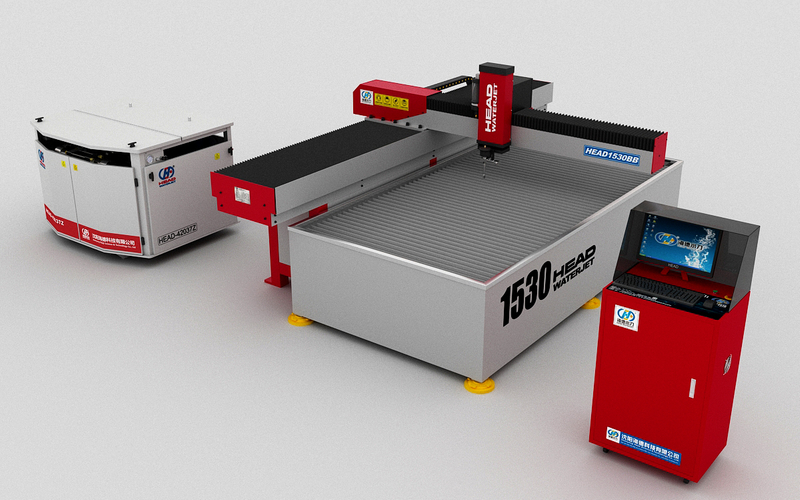

1530三轴纯水刀头+420青锋泵

Technical specifications
The high-pressure pump is characterized by:
Nominal power
37 kW / 50 HP
•Hydraulic pump of variable flow and compensated pressure
Maximum working pressure
4136 bar
•High / low pressure selection that allows piercing
Maximum flow
4.1 L/min
•Electrical inversion of the cutting head
Hydraulic tank capacity
211 L
•Noise level below 80dB
Pressure accumulator volume
1 L
•Leakage detection in de high-pressure circuit
Water inlet pressure
2.4 - 5.5 bar
•Long lasting high pressure seals
Nominal current
72 A
•System to uninstall de piston without uninstalling the cylinder
Protection at 380 V / 50 Hz
80 A
•Air / oil heat exchanger
Noise level
76 dB
•Cost-effective Cutting System
  • Over ten years experience in water jet equipment industry.

  • First enterprise who masters the core technology of both UHP & High Flow output in China.

  • Our machine is easy to operate and use more safe.

  • We have our own factory, provided OEM/ODM manufacturer.

  • Professional technician team provide 24/7 service.

  • Cutting materials:Stainless steel , brass, aluminum,stone ,plastic , glass.etc

  • Cutting thickness:0-150mm

  • Max. pressure:300-400mpa

  •  Cutting accuracy: +/-0.1mm

  • Max.flowrate: 3.7 L/Min

  • Max. orifice diameter:0.33mm(0.013'')


Quality Control

激光水准仪

Absolute Laser Tracker

The use of an interferometer records the machines X and Y axis  movement during cutting to ensure accuracy.

Adjustments are made to ensure machine is precisely tuned before shipment.


来料检测

Incoming inspection

Product advantages, efficient and stable

130 quality inspections, stable product performance

130 quality inspections and 72h durability test before leaving the factory ,ensure stable performance of cutting machines and service life of key parts up to 100,000 hours.


找水平

Machine tool level accuracy detection

A collimator is run along the full length of the guide rail, testing for straightness. Adjustments are made as required to ensure linear accurae linear accuracy.



Our Service

售后


1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

Machine Show

1530

HEAD1530BB, Used in Kyrgyzstan
