HEAD2580BA
HEAD
HS code: 84565000
Detials Show
Equipped with magnetic grating ruler to form a full closed-loop detection system

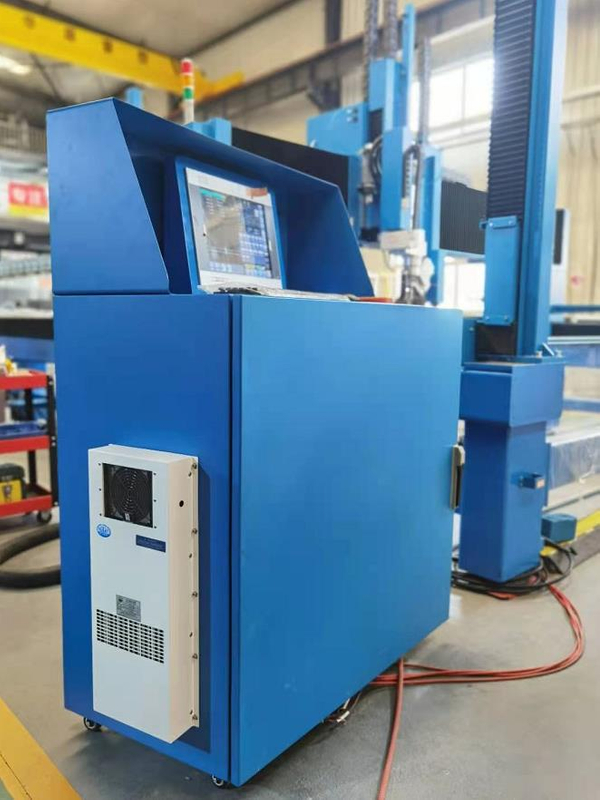

Equipped with a lifting LCD, which rises when the machine runs normally while it is in lower position when the machine stops.
Equipped with follower device, adjust the height of cutting head which prevents collision.
Technical Parameters
| Project | Project | Project | Project |
| kind of electric current | three-phase alternating | Dimensions of the desktop | length:8000 mm |
| mains voltage | 380 V | Width:2500 mm | |
| voltage fluctuations | ± 10% | Z-axis | 300 mm |
| electric current frequency | 50 Hz | Maximum load on the support grid | 1200 kg/м2 |
| frequency fluctuations | ± 0.4 Hz | Positioning accuracy (over the entire travel distance at a temperature of 20 ± 2 ° C) | ±0,025 mm |
